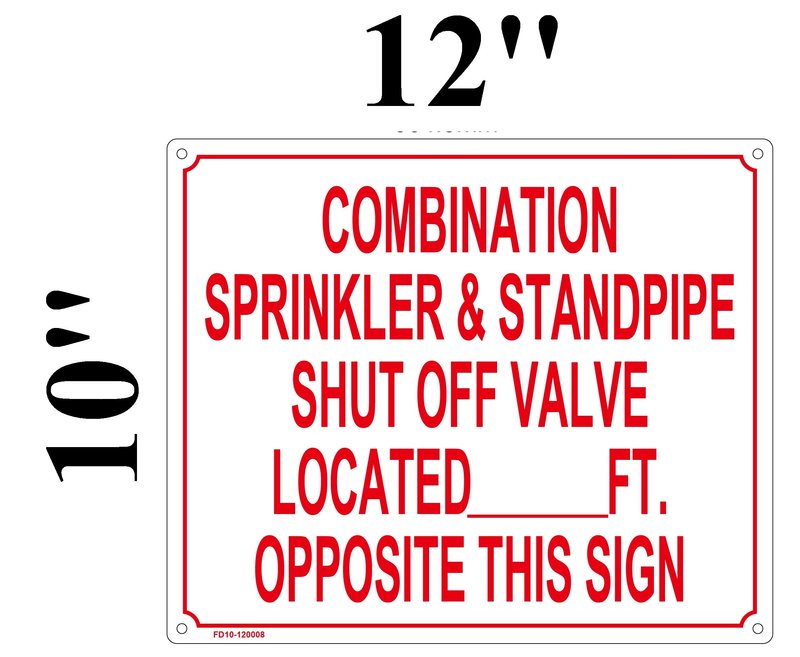

COMBINATION SPRINKLER AND STANDPIPE SHUT OFF VALVE LOCATED _ FT OPPOSITE THIS SIGN SIGN (ALUMINUM SIGN SIZED 10X12)
SPRINKLER SIGN: COMBINATION SPRINKLER AND STANDPIPE SHUT OFF VALVE LOCATED _ FT OPPOSITE THIS SIGN SIGN (10 X 12)
Size 10 Inch x 12 Inch
Sign Material: Aluminium
Sign Thickness 0.5 MM
Sign letters color: RED
Sign background color: WHITE
Sign Type: Wall Mounted
HPD Required sign: NO
DOB NYC Required sign: YES (See Law and regulations- for more detail)
Fire Department required sign: YES (See Law and regulations- for more detail)
Required signs for restaurant and bars- NO
Sign Group: NYC Fire Department Signs, NYC DOB required sign, NYC Sprinklers signs , and NYC Fire department required signs.
For More Information about NYC Fire Department code and NYC Sprinkler signs - CLICK HERE
Fire Sprinkler Signs- The signs are designed to identify different controls and pipes for fire sprinkler systems in your facility. A fire sprinkler or sprinkler head is the component of a fire sprinkler system that discharges water when the effects of a fire have been detected. Many states require owners to install clear signs identifying the different types of fire sprinklers used.
There are various types of fire systems. 4 of them are described below:
Dry Pipe Sprinkler system-Dry pipe sprinklers are similar to pre-action systems as they use pressurized air in the pipe which exits before water escapes. This causes a minute delay in water discharge but is ideal for buildings with low temperatures so the pipes do not freeze. These fire sprinkler systems have a fast opening tool to get rid of the air and speed up the flow of water. Warehouses located in the north are a good example of what buildings should use dry pipe sprinklers.
Wet Pipe Sprinkler system-Wet pipe fire sprinklers constantly have water in them. This allows for a quick reaction to a fire and is the most common type of sprinkler installed in buildings. A type of building that uses the wet pipe system is a high-rise or office building with a few floors. This fire sprinkler system is cost efficient and low maintenance.
Pre-action fire sprinkler system-Pre-action fire sprinkler systems are filled with air and water is allowed to pass through when the smoke alarm or detector goes off. This type of system requires two triggers to start water flow. It helps greatly that the pre-action fire sprinkler can be set to prevent water from spouting in case of a false alarm or a mechanical failure. The pre-action system is good for use in places where the sprinklers are only necessary when there is an actual fire so other items in the building do not get water damage from an accidental sprinkling. Such buildings include libraries and data centers. These places contain items of high value like electronics and goods damageable by water such as books
Deluge Fire Sprinkler -These types of fire sprinkler systems also need a smoke or heat detector like the pre-action system. A deluge system has open nozzles that can be used when a hazard is present. When flammable liquids are spread across a floor, deluge fire sprinklers are good to have. In that case, buildings such as industrial parks and buildings with many tanks have deluge fire sprinkler systems installed.
Shipping and Handling Cost:
Our Shipping is fixed whether you buy 1 item or 20 items (We Ship within USA Only) - do not miss this opportunity to buy all signs needed at no additional shipping cost.
We are required to collect sales tax on any product sold on this site and shipped to an address in New York. The sales tax is 8.875 percent.
The requirements for sign content are determined by intended
use and by applicable regulation. The BUYER is responsible for determining
the appropriate content for a sign or package of
signs. Firedepartmentsigns.nyc makes no warranty or representation of suitability
of a sign for any specific application. IT IS THE CUSTOMER'S RESPONSIBILITY TO
ENSURE THAT THE SIGNS THE CUSTOMER ORDERS ARE IN COMPLIANCE WITH ALL STATE,
FEDERAL, LOCAL, AND MUNICIPAL LAWS. Please review terms and conditions
prior to purchase.
For more information about what is required, see the laws that are referenced and the rules applicable to your city and state. This page is for informational purposes only and is not intended as legal advice or as a statement of law. You may wish to consult with an attorney.
WE ARE THE OFFICIAL SITE FOR FIRE DEPARTMENT SIGNS. FIRE DEPARTMENT SIGNS will provide you with all FIRE DEPARTMENT required signs, NYC Building required signs, CALIFORNIA FIRE DEPARTMENT required signs, TEXAS FIRE DEPARTMENT required signs and all sprinkler required signs. We offer a wide range of sprinkler signs, fire department connection signs, Siamese signs, Standpipe signs, sprinkler tag signs, fire exit signs, FDC signs, fire door signs and stairwell signs. We offer all signs made mandatory by the City and state building department. We are the biggest building Management signs provider in the world.
Find us on:
This is an aluminum “COMBINATION SPRINKLER AND STANDPIPE SHUT OFF VALVE LOCATED _ FT. OPPOSITE THIS SIGN” SIGN with holes for heavy duty installation. In NYC use/post sign to inform tenants/owners/guests/officers of combination standpipe & sprinkler in facility with proper HPD designation and aluminum signs
